Create Calculated Meter for DI Counter on AcuRev 2100
AcuCloud – Creating Calculated Meter for DI Counter on AcuRev 2100
This document provides users with a walkthrough on how to create a calculated meter on AcuCloud to represent the DI counter for the AcuRev 2100 meter.
Users will need to have an AcuCloud account created and the AcuRev 2100 added before attempting to create the calculated meter.
NOTE: To create an AcuCloud account please go to www.accuenergy.com or reach out to Accuenergy Technical Support for assistance on adding the device to AcuCloud.
Open the AcuCloud software.

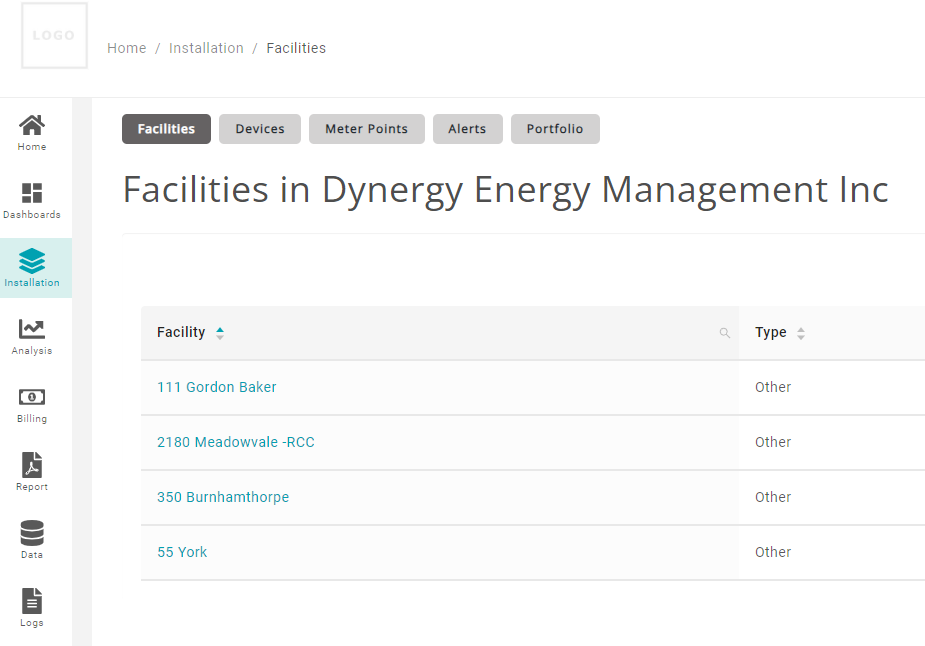

Click on the “Installation” tab.
Then select the “Devices” tab.
Click on “+ Calculated Meter”.
Enter in the details for the device.
Under Parameter Type select “Accumulative”.
Enter in the units or select the Utility Type if using a gas or water meter.

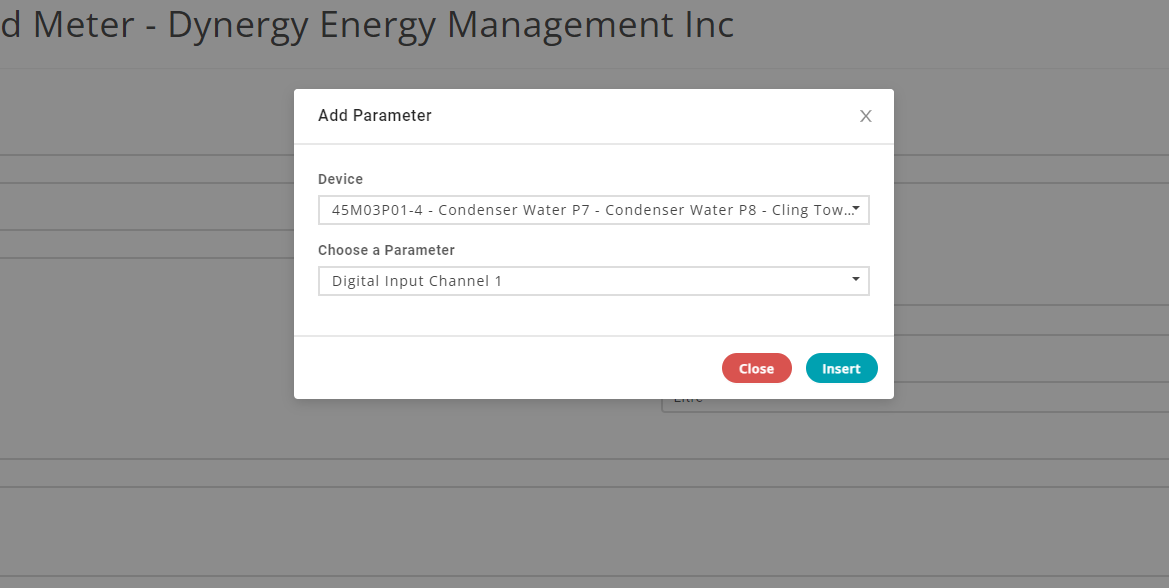

To add the digital input channels, click on “Add Parameter”.
Under “Device” select the device that is using the Digital Input.
Under “Choose a Parameter” select the Digital Input Channel required.
The search function can also be used to search for the desired input.
Click on “Insert” once the correct parameter is selected.
From here additional operations can be added to the formula to scale the Digital Input counter values.
Click on “Submit” once all information has been entered correctly.
You can the energy data for the Calculated Meter under the “Analysis” tab.
