How to download meters data using Trend log Management


The Trend log management allows users to access the meter data directly from the data base of the Acuvim II.  This acts a back logger for users if they need to access the meter data or if they forget to enable the data logs.

The Trend log Management stores the real time/demand/power quality data for 1 month and stores the energy data for up to 3 years.  We recommend users to utilize the data loggers supported in the AXM-WEB2 and only use the trend log management as a back up.

Below are the steps to download the data.

Login to the web interface using admin access level. The default username and password is admin/admin.

Graphical user interface, application, websiteDescription automatically generated












After logging in users will be redirected to the Dashboard.  From here click on the “Logs” menu and select “Trend Log Management”.



TableDescription automatically generated













On the Trend log management page select the parameters you wish to download.  In the “Log Param Type” drop down menu users can select the different categories of data to download.

NOTE: Energy parameters are stored in the meter for up to 3 years, all other parameters are stored for 1 month.


The dates on the parameters represent the time for which the parameters are logged, you’ll notice energy has the largest time since it is stored up to 3 years.

Graphical user interfaceDescription automatically generated













Select all parameters that you need to download data for.  Users also have the option to select the “Log Param Type Detail”, which allows users to log the instantaneous, minimum, max, and average value.


NOTE: Only real time and demand parameters support “Log Param Type Detail”, if energy or power quality parameters are included in the log these options are “greyed” out.

Graphical user interface, tableDescription automatically generated














After selecting your parameters, select the time in which the data log is required.  Users can enter in the start and end times as well as the logging interval.

Graphical user interface, text, application, chat or text messageDescription automatically generated

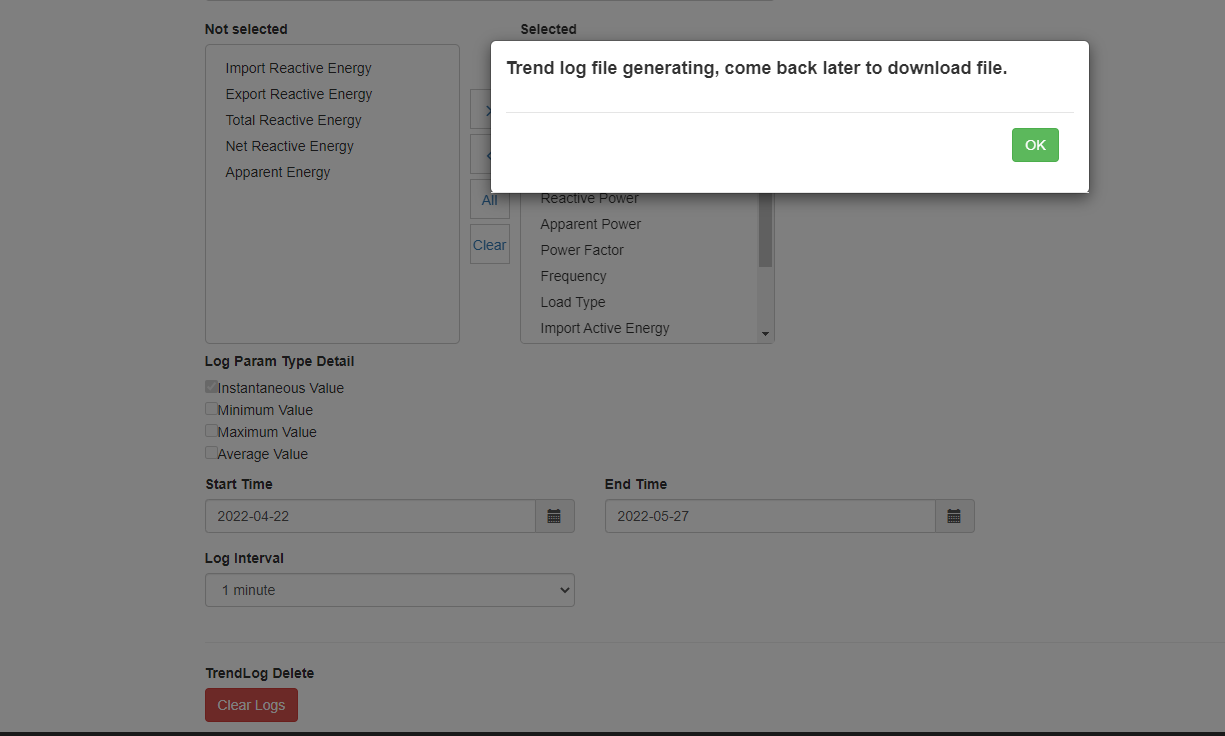

Next click on the “Generate File” button to generate the log file.  This may take some time depending on how much data was requested.  Users can navigate to other pages during the log generation as the download can take place in the background.


Graphical user interface, text, applicationDescription automatically generated
Once the log is generated, click on the file name to download the file.

Graphical user interface, text, applicationDescription automatically generated

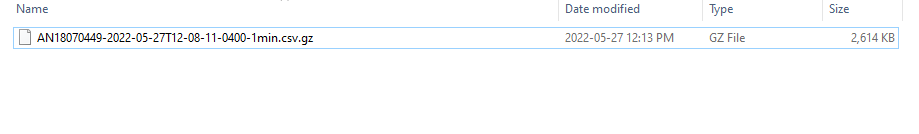

The file is download as a .gz file, users can use an software such as 7Zip or WinRAR to view the file.



Graphical user interfaceDescription automatically generated with low confidence






This example we will use “7-Zip” to extract the file.


Graphical user interfaceDescription automatically generated with medium confidence





Graphical user interface, text, application, emailDescription automatically generated

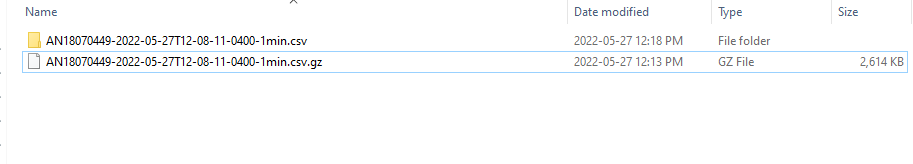

Graphical user interface, text, applicationDescription automatically generated

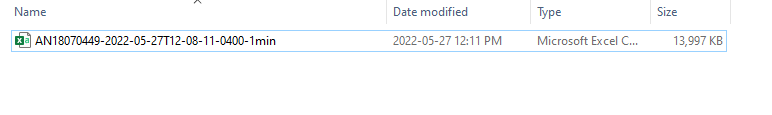

Once the file is extracted you can open the .csv file.

Graphical user interface, application, table, ExcelDescription automatically generated
